Laser Indication Machine Mounted Receivers

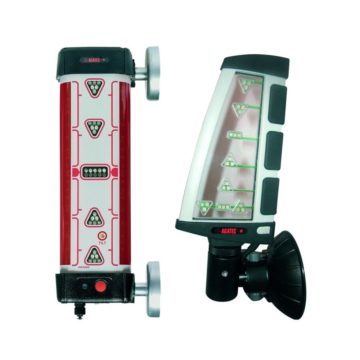

360 Machine Receiver with wireless In-Cab Display

Description

This wireless machine mounted receiver is suitable for earthmovers, excavating and large civil construction jobs.  Having all the information inside your cab saves huge time jumping in and out or having a second person on the ground checking your work. The receiver is extremely well built and water tight and has dampening between the receiver and the mounting options.

One specialist feature of this system is Blade Tilt indication, if mounted on dozer or grader blade indicates when blade is level or at an angle. Another specialist feature is Plumb Swing indication when mounted on back hoe indicated when the receiver/ arm is vertically upright or tilting forward or back, ideal for getting correct depth in trenching.

Features:

  • 360 Degree Sensors for all round reception
  • Large 260mm Reception Window
  • Two Way RF Transmition between Receiver and In-Cab display unit
  • Accuracy settings +/-5mm , 10mm and 20mm
  • Blade Tilt Function
  • Plumb Swing Function (Excavator Mode)
  • Laser Received Height Flash
  • Magnetic and Clamp Mounts (receiver)
  • Windscreen, Magnetic and Clamp Mounts (In-Cab unit)
  • IP66 water and dust tight
  • Internal Ni-Mh battery and Mains Charger (receiver), “AA” batteries for In-Cab.
  • WRD In-Cab Repeater Unit and Cables
  • Operates with Red Beam Rotating Lasers, Range 200m (class 3 lasers).
  • Two Year Warranty
